The App Interface

Opening the app

Open apps.geoglows.org/grace-anomalies in a current version of Chrome, Edge, Firefox or Safari. Nothing needs to be installed and there is no login. The first visit downloads the data for the default layers, which can take a few seconds on a slow connection; after that the app keeps a copy in the browser and opens quickly.

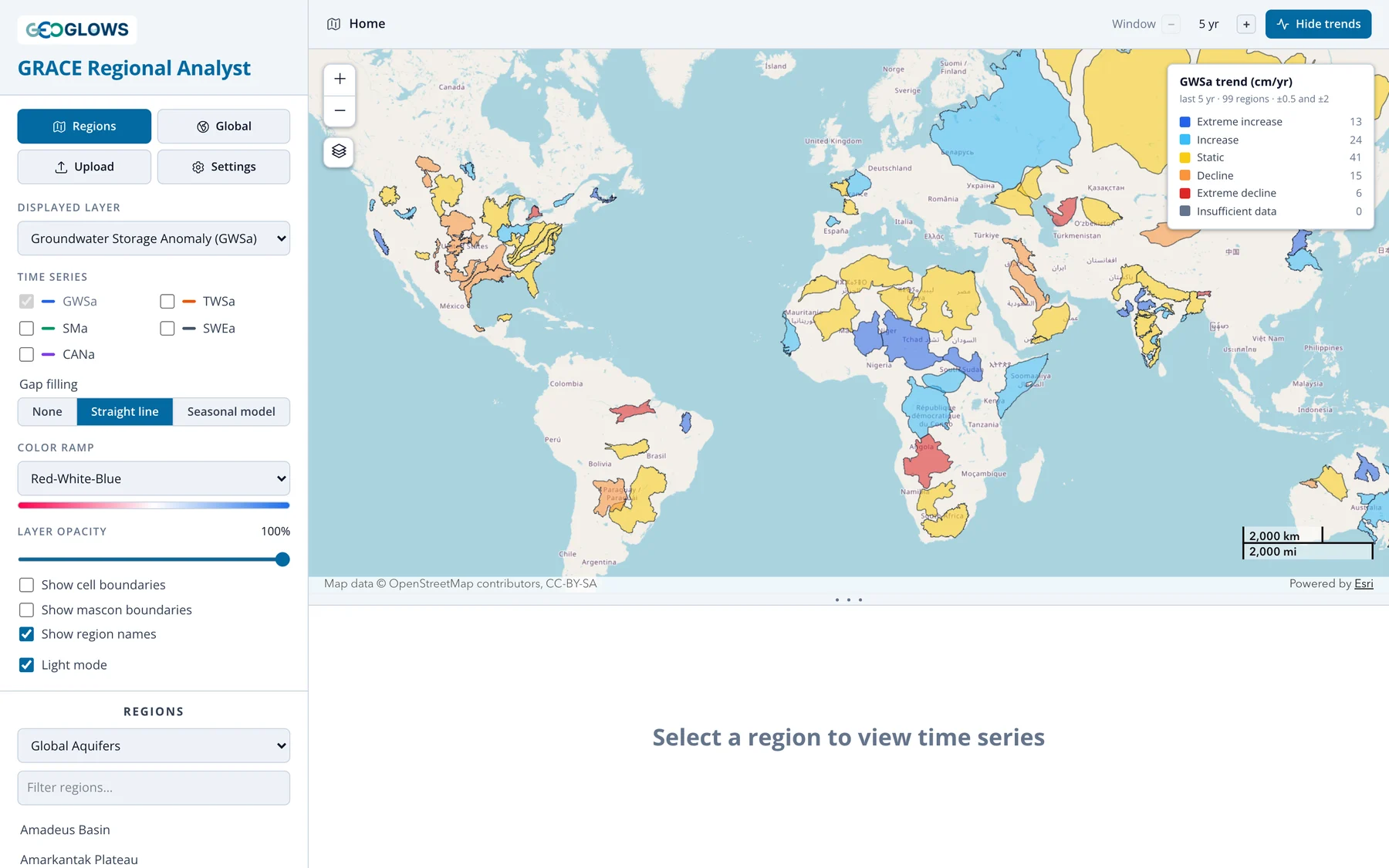

The GRACE Regional Analyst on opening

The window has three parts: the control panel on the left, the map at the top right, and the chart panel below the map. Drag the three dots between the map and the chart to give either one more room; double-click them to restore the default split.

Control panel

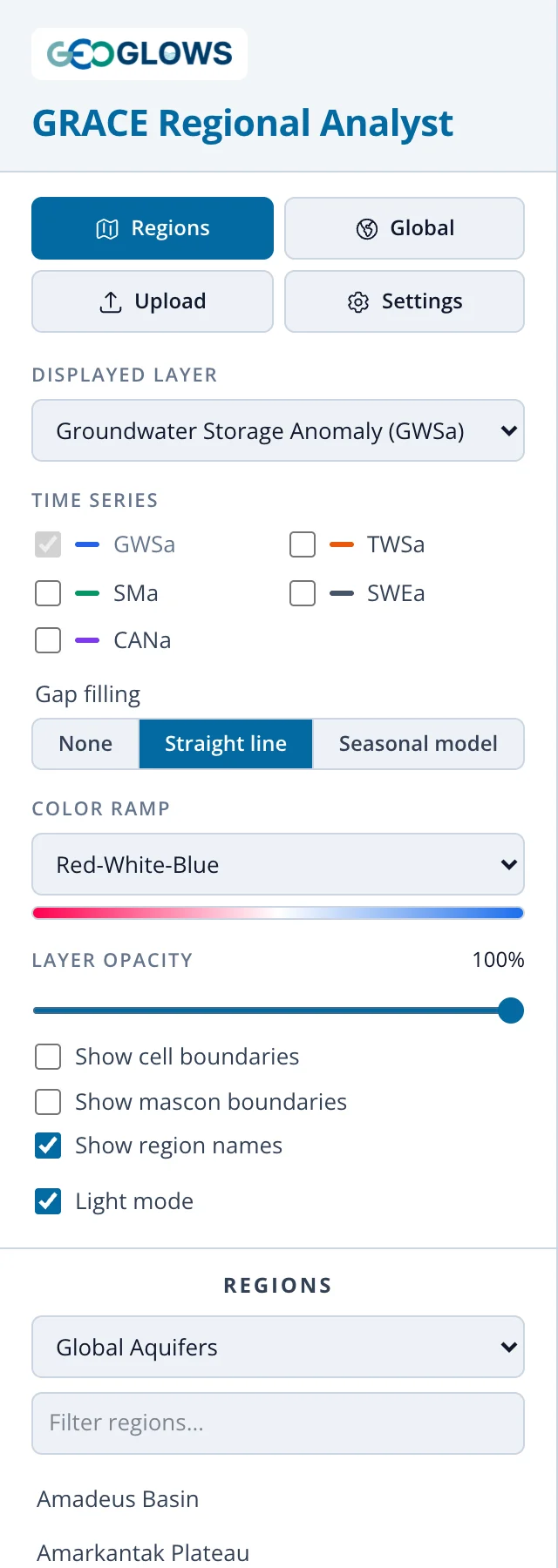

The control panel

From top to bottom:

  • Regions / Global. Switch between the regional view, which shows region outlines and analyzes one region at a time, and the global view, which animates the whole world. Clicking Regions while a region is open returns to the overview.
  • Upload. Load your own region boundary from a GeoJSON file (see Regional View).
  • Settings. Display settings, described below.
  • Displayed layer. The storage component shown on the map and plotted in the chart:
    • Groundwater Storage Anomaly (GWSa), the default
    • Total Water Storage Anomaly (TWSa)
    • Soil Moisture Anomaly (SMa)
    • Snow Water Equivalent Anomaly (SWEa)
    • Canopy Water Storage Anomaly (CANa)
  • Time series. Check other components to add them to the chart for comparison. The displayed layer is always plotted (see Regional View).
  • Gap filling. What the chart does at months with no GRACE data. None breaks the line at each gap, Straight line joins the months on either side, and Seasonal model fills the gaps with values estimated from the rest of the record, drawn as a dashed line with open markers (see Gaps in the Record). The setting changes only the chart, never the downloaded CSV.
  • Color ramp. Six palettes. Viridis, Cividis, Brown-Teal and Purple-Green are safe for readers with color vision deficiency.
  • Layer opacity. Fade the anomaly cells to see the basemap underneath.
  • Show cell boundaries / Show mascon boundaries. Outline the grid cells, or the 3° GRACE mascons that set the true resolution of the data.
  • Show region names. Label region outlines once you zoom in.
  • Light mode. Switch between the light and dark themes.
  • Regions. Choose a region set, filter it by name, and click a name to analyze that region.

Map

The map has zoom buttons and a basemap menu (the layers icon below the zoom buttons) offering OpenStreetMap, topographic, imagery, streets, light gray, dark gray and terrain basemaps. A scale bar sits in the lower right. The color bar in the upper right gives the scale for the anomaly cells, always centered on zero; the trend legend appears above it while trends are shown.

The time control at the bottom of the map steps through the months:

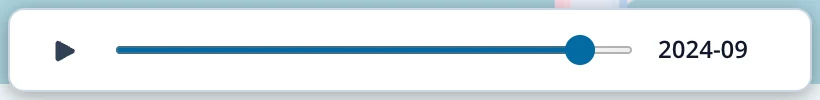

The time control

Press play to animate, or drag the slider. The slider only stops on months that have GRACE data. The current month is also marked on the chart with a red dashed line.

Header bar

The header bar: breadcrumb on the left, trend controls on the right

The breadcrumb on the left shows where you are: Home (the overview), a region name, Global map, or the coordinates of a selected cell. Click Home to return to the overview. On the right, Analyze trends / Hide trends turns trend classification on and off, and the Window stepper sets the period the trend is computed over. See Trend Analysis.

Settings

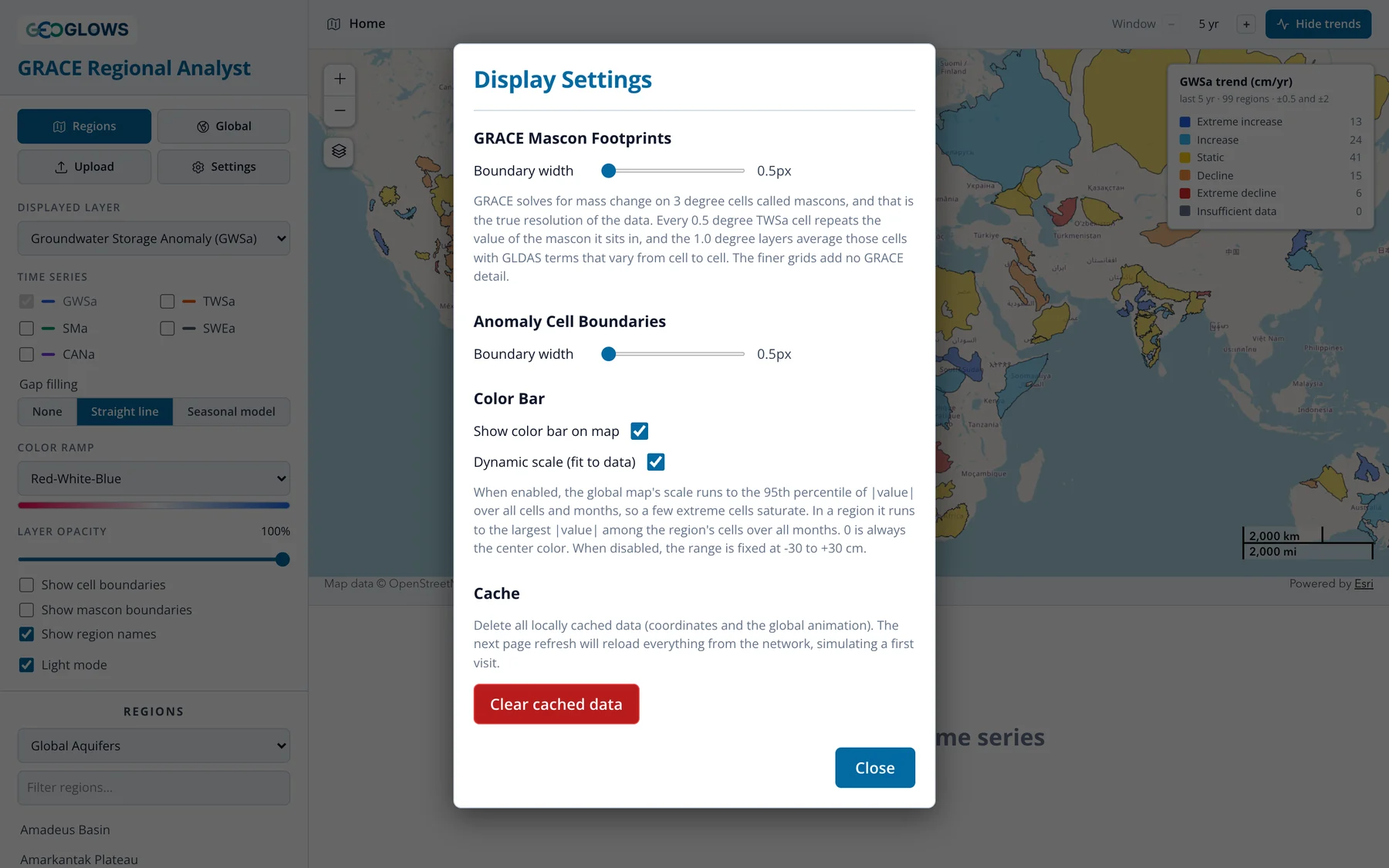

The Display Settings dialog

  • GRACE mascon footprints and anomaly cell boundaries: line widths for the two outline layers.
  • Show color bar on map: hide or show the color bar.
  • Dynamic scale (fit to data): with this on, the color scale stretches to fit the data you're looking at, so small anomalies remain visible. In a region it fits the largest absolute value in the region's cells over the whole record; in the global view it fits the 95th percentile of absolute values, so a few extreme cells don't wash out the rest of the map. Turn it off to use a fixed scale of −30 to +30 cm, which is better when comparing screenshots of different regions.
  • Clear cached data: delete the copy of the data the app keeps in your browser. The next visit downloads everything again. Use this if the app behaves oddly after a data update.

Settings last until you close the page. The light or dark theme and the size of the chart panel are remembered between visits.
